Prefabricated Power Solution for Quick Installation

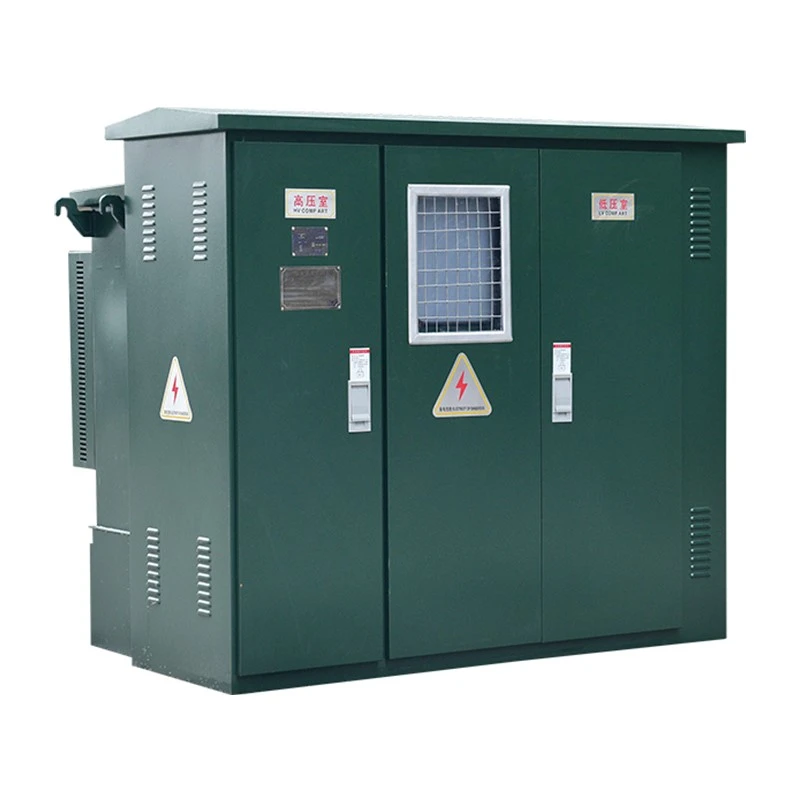

Our Box Type Substation offers a complete factory-built power solution. This product integrates high-voltage switchgear, power transformer, and low-voltage switchgear. All components are installed in one weatherproof enclosure. We complete all wiring and testing at our factory. When the unit arrives on site, simply connect incoming and outgoing cables. Power is ready for immediate use after cable connection. This installation method dramatically reduces on-site construction time. It also reduces installation costs and quality risks. The high-voltage side is available at 10kV or 40.5kV. The low-voltage side is 0.4V. Transformer capacity ranges from 315kVA to 2500kVA. You can choose load switches or circuit breakers for the high side. You can choose fuses or breakers based on reliability and cost needs. The transformer can be oil-immersed or dry-type. The oil type offers better heat dissipation for heavy loads. The dry type offers better fire safety for sensitive locations.
Robust Enclosure for Outdoor Conditions

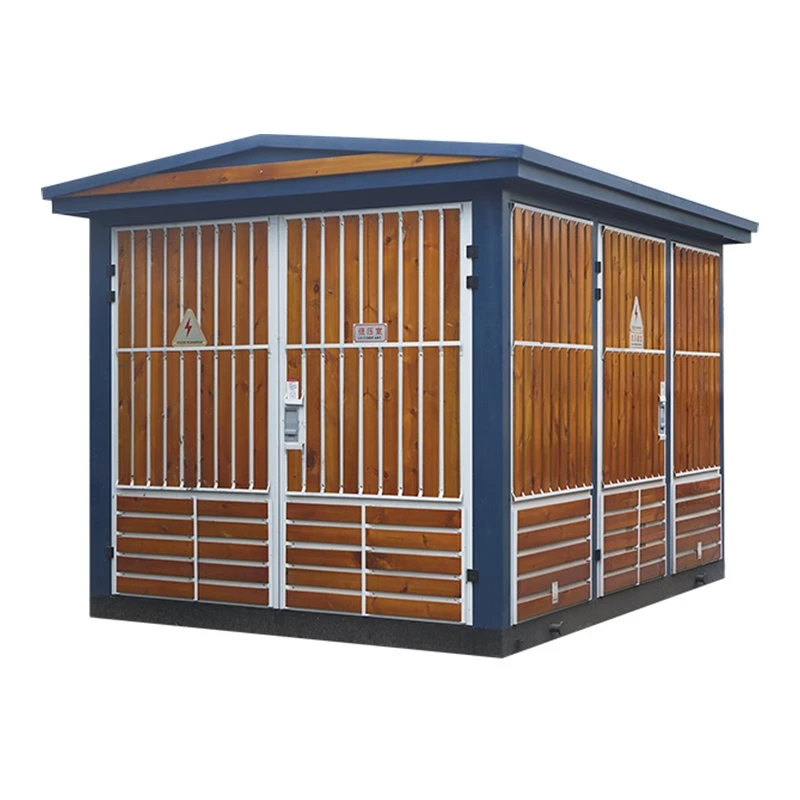

This Box Type Substation features a robust outdoor enclosure. Protection level is IP44 against rain and dust. The enclosure uses corrosion-resistant steel with a painted finish. This provides excellent weather resistance for long outdoor service. The enclosure is divided into high-voltage, transformer, and low-voltage compartments. Each compartment is separated by partition panels. This prevents interference between different equipment sections. Internal lighting, ventilation, and temperature control systems are standard. These maintain suitable operating conditions for all internal equipment. We design our substations with adequate maintenance access space. Workers can perform inspections and maintenance safely and comfortably. The enclosure is built to withstand mechanical impacts and environmental stress. It provides reliable protection for the valuable equipment inside.
Customization And Export Support
Our Box Type Substation can be customized for different project requirements. We adapt to local grid standards and environmental conditions. We adjust for specific import requirements of different countries. We provide professional export packaging and shipping documentation. All required clearance documents are prepared for your project. The unit is tested as a complete system before shipment. We verify interlocking between all components during factory testing. Our 12-month warranty covers the complete substation. We have successfully supplied these units for many domestic and international projects. The prefabricated design simplifies project logistics and management. Choose our Box Type Substation for a ready-to-use power distribution solution.
Product Parameters
|
Parameter |
Value |
|
Product Series |
YB Prefabricated Substation |
|
High-Voltage Side |
10kV / 40.5kV |
|
Low-Voltage Side |
0.4kV |
|
Transformer Capacity |
315kVA - 2500kVA |
|
Integrated Functions |
Load Switch, Transformer, Low-Voltage Switchgear |
|
Protection Level |
IP44 (Outdoor) |
|
Warranty Period |
12 months from delivery date |
