Compact Isolation for Switchgear Installations

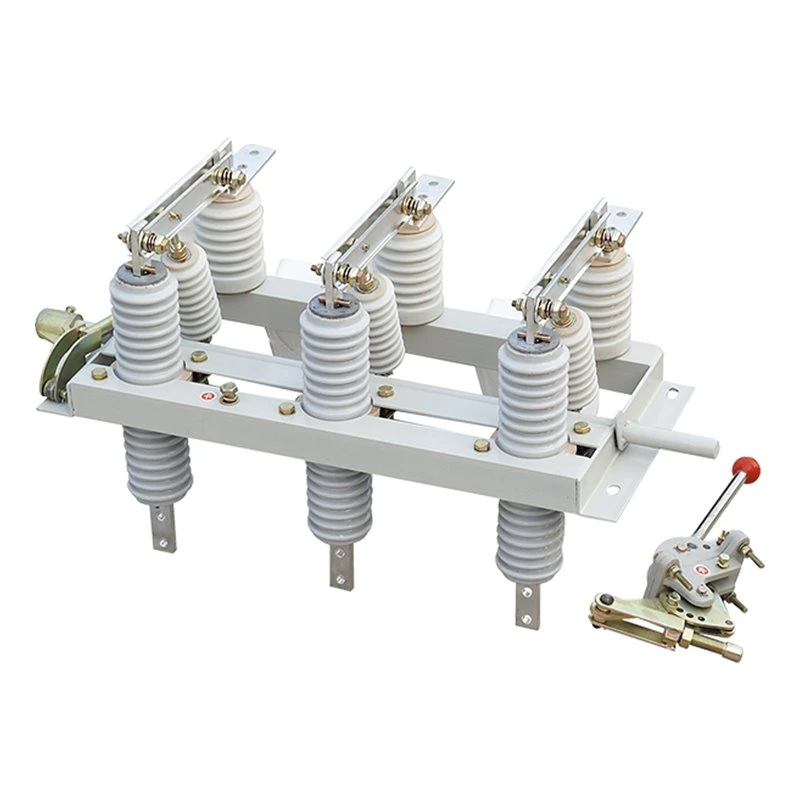

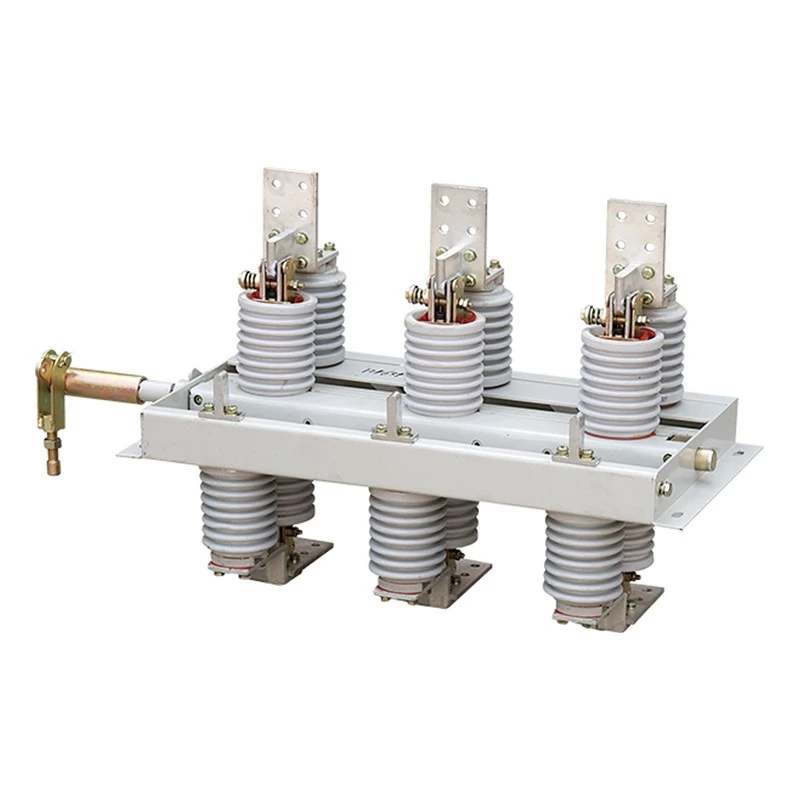

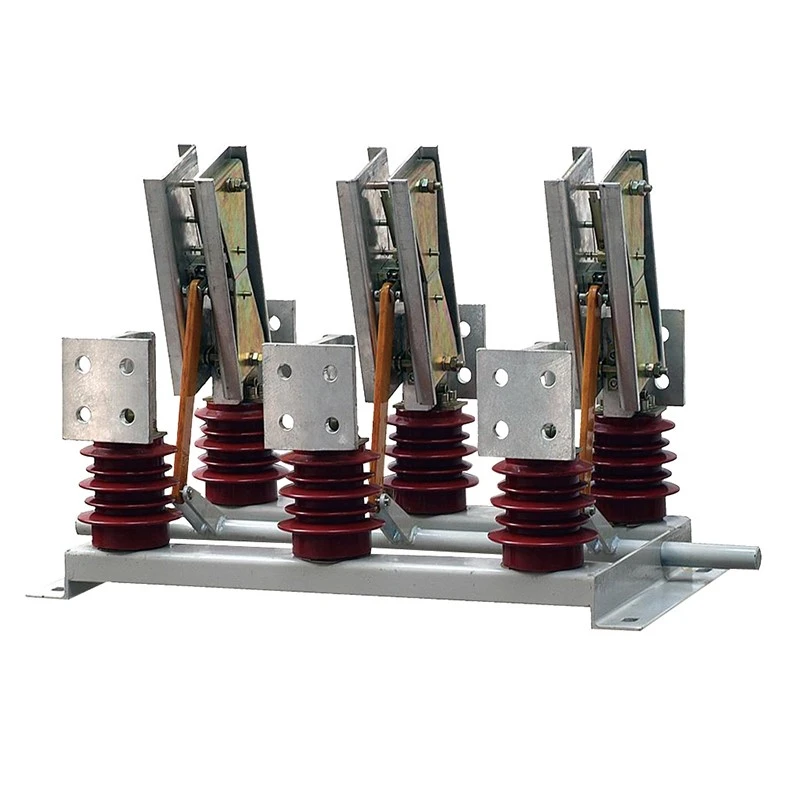

Our Indoor High Voltage Disconnector is designed for metal-clad switchgear applications. This product covers 10kV, 24kV, and 40.5kV voltage levels. It uses air insulation and has a compact structure. This makes it ideal for space-limited indoor distribution rooms. The product handles rated currents from 400A to 1250A. It matches different circuit isolation requirements. The GN series is typically installed on the incoming or busbar side of switchgear. It isolates the circuit breaker from the busbar during maintenance operations. This creates a visible safety gap for workers. We have extensive experience supplying switchgear manufacturers. We understand the importance of proper mechanical and electrical matching. Our facility produces both the disconnector and the switchgear. This enables full control over fit and performance.
Flexible Operation with Integrated Grounding
This Indoor High Voltage Disconnector offers flexible operation options. It can be operated manually via the handle on the switchgear door. It can also be equipped with a motor operating mechanism for remote control. Both methods are easy and require minimal effort. The operating feel is clear and positive. The product includes a ground switch as standard equipment. When the disconnector is open, the ground switch closes simultaneously. This grounds the isolated circuit for worker safety. The switchgear door interlock prevents access to live compartments. This interlock meets five-prevention safety requirements. We adjust contact spring pressure and contact synchronization carefully. Every unit has contact resistance well below standard limits. This reduces heat generation and power loss during normal operation.
Complete Testing and Export Documentation
Our Indoor High Voltage Disconnector receives full mechanical and electrical testing before shipment. We perform mechanical operation tests on every unit. We also conduct power frequency withstand voltage tests. These tests confirm insulation integrity and safe operation. Our 12-month warranty covers the product from delivery. For export orders, we can adjust packaging to your requirements. We provide the necessary export documentation with each shipment. We understand that customs clearance needs proper paperwork. We make sure all documents are complete and accurate. The GN series is a standard product for indoor applications. It works with most common switchgear configurations. Our quality control ensures reliable performance year after year. Choose our Indoor High Voltage Disconnector for a dependable and safety-focused isolation solution.
Product Parameters
|
Parameter |
Value |
|
Product Series |
GN Series |
|
Voltage Ratings |
10kV, 24kV, 40.5kV |
|
Rated Current |
400A - 1250A |
|
Insulation Type |
Air Insulation |
|
Ground Switch |
Standard Equipment |
|
Installation Position |
Indoor High-Voltage Switchgear |
|
Warranty Period |
12 months from delivery date |
